3M™ DBI-SALA® Nano-Lok™ Connected Order Picker Alert System
The 3M DBI-SALA Nano-Lok Connected Order Picker Alert System is an innovative fall protection system that senses a worker’s presence on an order picking vehicle, verifies their tie-off status, and communicates visual and audible alerts in real time to promote situational awareness and safe behavior. OEM dealer technician installation recommended but not required. System includes: 3M™ DBI-SALA Nano-Lok Connected Carabiner Self-Retracting Lifeline, Alert Sensor Box, Carabiner, Light Strips and Alert Sensor Box Power Cable.
The 3M DBI-SALA Nano-Lok Self-Retracting Lifelines are rugged, yet lightweight and engineered devices that you can count on for comfortable and efficient fall protection. With stainless steel components, an anti-ratcheting brake system, and a semi-sealed design, this system is built to last. The lifeline extends as the user moves away and retracts automatically, allowing the user to move within a recommended working area at normal speeds. In the event of a fall, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user. These features are key safety improvements compared to the use of a lanyard. Available in multiple self-retracting lifeline lengths. ANSI Class Level 1.
| Part Number | Overall Length | Number of Legs | Harness Connection | Anchorage Connection | Weight Capacity | Average Arrest Force |
|---|---|---|---|---|---|---|
| A000066699 | 11 ft. (3.35m) | One | Connected Carabiner | Cab-mount Carabiner | 310 lb. (140.6 kg) | 1125 lbf (ANSI), 1125 lbf (OSHA up to 420 lb) |

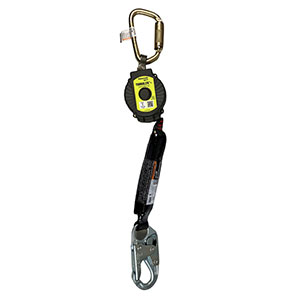

Honeywell Miller TurboLite™+ Personal Fall Limiter
Part Number: A000066886
The original Personal Fall Limiter is now part of the PLUS family of newly redesigned self-retracting devices, rated to provide protection as per OSHA for up to a 420 lb (190.5 kg) worker, showcasing new user-friendly labels and design that aligns with Honeywell Miller harnesses.
Part of the Self-Retracting Device (SRD) family, Personal Fall Limiters are wearable fall protection, well-suited for workers who value mobility on the jobsite and need to reduce fall clearance requirements.
- Meets requirements of OSHA, the new ANSI Z359.14-2021 Class 1 and CSA Z259.2.2-2017 Class SRL
- Length: 6-foot length
- Unit Connector: Steel Carabiner
- Lifeline Type: Single
- Lifeline Connector: Steel Locking Snap Hook
- ANSI/CSA Max Working Capacity: 310 lb (141 kg)
- OSHA Max Working Capacity: 420 lb (190.5 kg)
Titan Fall Limiter
Part Number: A000013206
- Offers 11-ft. (3.4 m) of working capacity
- Maximum working load rated to 310 pounds
- Includes stainless steel swivel shackle and carabiner
- Requires less fall clearance than shock-absorbing lanyards
- Offers more mobility than a shock-absorbing lanyard
- Quick-activating stainless steel braking mechanism arrests free falls
- Compact, lightweight design, corrosion-resistant interior components
Titan Positioning and Restraint Lanyard
Rope and Web Lanyards recommended for work positioning and restraint only.
| Part Number | Material | Number of Legs | Harness Connection | Anchorage Connection | Length | Maximum Working Load |
|---|---|---|---|---|---|---|
| A000013014 | Polyester Rope (5/8") | One | Locking Snap Hook | Locking Snap Hook | 6 ft. | 310 lbs. (141 kg.) |
Titan Tubular Shock-Absorbing Lanyard
Titan Tubular Shock-Absorbing Lanyards feature a built-in woven inner core that smoothly expands to reduce fall arrest forces, while the outer jacket serves as a back-up web lanyard.
| Part Number | Material | Number of Legs | Harness Connection | Anchorage Connection | Length | Maximum Working Load |
|---|---|---|---|---|---|---|
| A000014120 | Webbing | One | Locking Snap Hook | Locking Snap Hook | 6 ft. | 310 lbs. (141 kg.) |
Titan Pack-Type Shock-Absorbing Lanyard
Titan Pack-Type Shock-Absorbing Lanyards include the shock absorber pack as an integral part of a standard lanyard. In the event of a fall, the pack smoothly expands to reduce fall forces while a back-up safety strap deploys for added fall protection.
| Part Number | Material | Number of Legs | Harness Connection | Anchorage Connection | Length | Maximum Working Load |
|---|---|---|---|---|---|---|
| A000013013 | Webbing | One | Locking Snap Hook | Locking Snap Hook | 4 - 6 ft. Adjustable | 310 lbs. (141 kg.) |
Miller StretchStop® Lanyard with SofStop® Shock Absorber
Contracts 6 - 4 feet, greatly reducing the chances of tripping, snagging, or dragging. The Miller SofStop Shock Absorber pack is designed with a specially-woven inner core that smoothly expands up to 42 inches (1.1m) to reduce fall arrest forces. Heavy-duty tubular web outer jacket serves as a back-up lanyard for added safety.
| Part Number | Material | Number of Legs | Harness Connection | Anchorage Connection | Length | Maximum Working Load |
|---|---|---|---|---|---|---|
| W505010633 | Webbing | One | Locking Snap Hook | Locking Rebar Hook | 4 - 6 ft. Adjustable | 310 lbs. (141 kg.) |
Miller Web Lanyard with SofStop Shock Absorber
The Miller SofStop Shock Absorber pack is designed with a specially-woven inner core that smoothly expands up to 42 inches (1.1m) to reduce fall arrest forces.
| Part Number | Description | Material | Number of Legs | Harness Connection | Anchorage Connection | Length | Maximum Working Load |
|---|---|---|---|---|---|---|---|
| A000032573 | Lanyard w/SofStop Double Pack for 12-ft. Free Fall | Webbing | One | Locking Snap Hook | Locking Snap Hook | 6 ft. | 400 lbs. |
SofStop Shock Absorber Only
| Part Number | Description | Material | Number of Legs | Harness Connection | Anchorage Connection | Length | Maximum Working Load |
|---|---|---|---|---|---|---|---|
| A000040607 | SofStop Absorber Only | - | - | Locking Snap Hook | D-ring | 18 in. | 310 lbs. (141 kg.) |
DuraFlex Warehouse Picker's Stretchable Harness
DuraFlex Harnesses conform to the shape of the worker, stretching with every movement, so there is no bunching, binding or kinking. With comfort unsurpassed, DuraFlex Harnesses offer wider end-user acceptance. And, a comfortable harness is worn properly, enhancing compliance and safety on the job site. Because DuraFlex Harnesses are stretchable, the worker has greater mobility with less fatigue.
- Back d-ring web extension
- Mating chest strap buckle
- Friction shoulder strap buckles
- Mating leg strap buckles
- Sub-pelvic strap
- Pull-down adjustment
- Pull-free lanyard rings
- Rated to 400-lbs. (181.4 kg) capacity
| Size | Part Number |
|---|---|
| Small/Medium | A000040605 |
Titan Non-Stretch Harness
- Fully adjustable designs
- Rated to 400-lbs. (181.4 kg) capacity
- Sliding back d-ring (no side d-ring)
- Mating shoulder strap buckles
- Mating chest strap buckle
- Two (2) pull-free lanyard rings
| Size | Part Number |
|---|---|
| Small/Medium | A000040606 |
Titan Body Belt
| Size | Body belt with tongue buckle, includes 1 side D-ring | Body belt with tongue buckle, includes 2 side D-rings |
|---|---|---|
| 28" - 37" (73 cm. - 94 cm.) | A000015968 | NA |
