Productivity

Enhanced Power Steering - Hydraulic or optional Electric power steering both promote more precise control during operations with minimal effort. The compact steering column design gives operators more room and better visibility.

Advanced Dual Drive System - Rapid acceleration, smooth directional changes, precise speed control and handling are just a few advantages of the all new AC drive system. Performance specifications including industry-leading travel speed and industry-leading turning radius (due in part to dual drive motors) set a new standard, and the acceleration, speeds, and regenerative braking can all be customized to your application for ultimate control.

IC Level Hydraulic Performance - Jungheinrich’s all AC hydraulic system provides smooth load handling and precise load placements, while reaching IC level loaded lifting speeds. Hydraulic cushioning is built into the mast staging function to minimize unnecessary shocks to the truck and to the load.

Request A Demo

Operator Assistance

All new advanced electronic controls sense the operating conditions and automatically respond with performance adjustments to meet the immediate need.

Curve Control

• Automatic sensing of load weight, steer angle, and speed
• Control system automatically adjusts the speed based on the operating conditions



Passive Sway Control

• Automatic sensing of load weight and mast movement (when lifting above 12.5ft)
• The gearbox and chassis automatically absorb mast sway to allow for smoother and more comfortable operation at height



Lift Control

• Automatic sensing of load weight and mast height
• Control system automatically limits the travel speed to 1.8mph when the forks are above 6ft
• Control system automatically adjusts the lifting and lowering acceleration to smoothly reach top hydraulic speeds without bouncing the load



Ramp Hold

• When releasing the accelerator pedal, the truck comes to a stop
• Automatic prevention of rollback
• Automatic sensing of grade & travel speed

Maneuverability

Industry-Leading Turning Radius - Shorter overall length combined with dual drive motors that can steer in opposite directions and a 100 degree rear steering axle. These features help improve load handling and bring peace of mind for operators in tight spots.

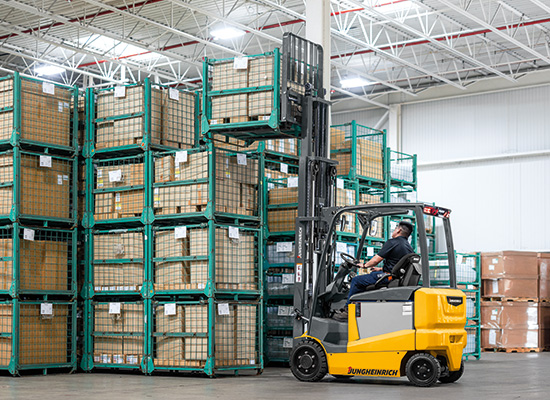

Capacity Retention - No sacrifices were made to achieve this smaller footprint. Reach heights up to 312" with excellent capacity retention.

Ergonomics

Spacious Operator Compartment – A roomy compartment combined with superior comfort features helps boost operator efficiency and productivity.

Ergonomic, Adjustable Seat – The full-suspension vinyl seat can be easily adjusted to suit operators’ unique preferences.

Optional Fingertip Controls – Boost your operator comfort and productivity by adding the optional fingertip controls – with an integrated horn button and directional control for added security.

Optional Mini Steering Wheel - Effortlessly control precise steering with minor hand movements over a spring-loaded armrest

Total Cost Of Ownership

500-Hour Service Intervals – Deliver a lower overall cost of ownership and inreased uptime. Light servicing with lubrication of mast and steer axle components at 500 hours. Full preventative maintenance scheduled at 1000 hours.

Easy-To-Maintain - Reinforced side panels and easy-to-remove component covers simplifies maintenance and maximizes your uptime.  500-hour service intervals reduce maintenance costs and save time.

Run Longer - With improved energy efficiency, you'll be able to run longer between charges and save on your energy bill.

Exclusive 5-Year Powertrain Warranty

Expect more from Jungheinrich, the experts in warehouse products, like a 5-year / 10,000 hour powertrain warranty that outperforms others. Available on all Jungheinrich Class I and II products sold across the United States, Canada and Mexico, the coverage includes parts and labor on all forklift components. Rest easier knowing that we’re here to help keep your fleet running – shift after shift – when you need it most.
