2.0 - 2.5 ton Capacity Platform Power Pallet Trucks | PBV20-25N3 & PBF20-25N3(R)(S)

2.0 - 2.5 Ton Capacity Power Pallet Trucks

The PBV20-25N3 & PBF20-25N3(R)(S) series of power pallet trucks offer extraordinary productivity and comfort, with significant engineering and design advances for fast and confident operation in almost every condition.

Página principal >
Productos >
PBV20-25N3 & PBF20-25N3(R)(S)

Background image of bags on warehouse shelves

features

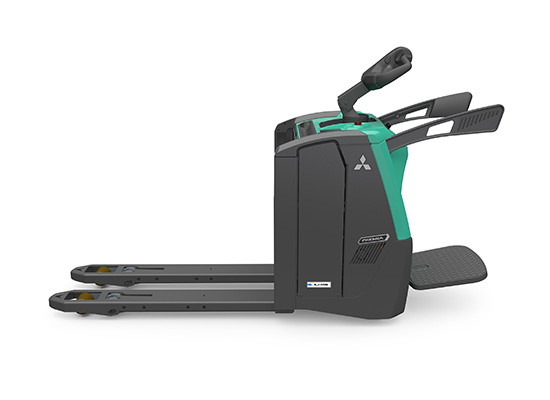

Productivity

Increase Productivity - These trucks are programmable to suit operators of all skill levels, helping to optimize your operations.

Work in Tight Spaces - Easy steering and a compact chassis provides excellent maneuverability that make it easier for operators to get around the warehouse quickly and efficiently.

Unique Floating Drive Unit - Works with additional friction force from the hydraulic system to maximize drive wheel pressure and traction, so braking performance is optimized and potential wheelspin on slippery surfaces can be prevented.

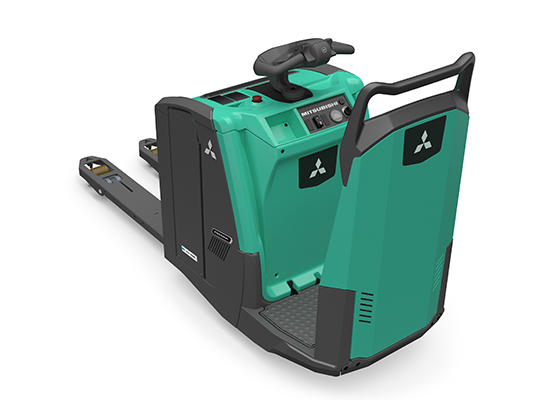

Ergonomics

Operator Platforms - Large, spacious platforms provide sustainable comfort, whether on a fold-down platform or a fixed platform.

Steering Designs - With many different types of steering, such as tiller-type power steering, comfort steering via a tiller head without arm, mechanical steering and electronic steering technology, operators have different options to help make sure they stay comfortable throughout their shift.

Keeping Operators Fresh - Ergonomically designed and built from the ground up with easy-to-reach controls, this truck is comfortable to operate, which also leads to increased throughput.

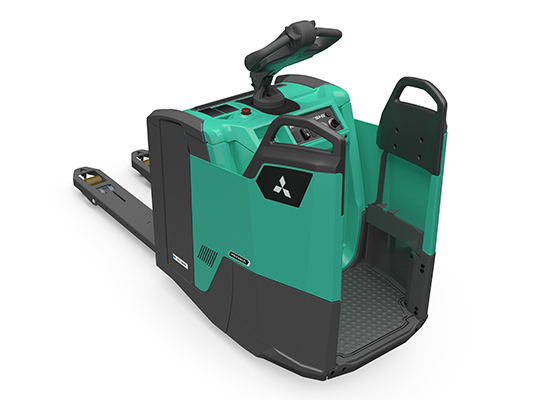

Intuitive

Cornering Control - Automatically slows truck down when turning in order to maintain smooth travel and load stability.

Electronic Steering Technology - Adjusts sensitivity automatically according to steered angle and truck speed while giving resistance and feedback for controlled travel.

Proportional Lift and Lower Control - Rocker switches enable smooth, rapid and precise load control for an instinctual feel and operation, helping to further protect loads.

Increase Operator Confidence - Caster wheel design uses variable damping to minimize shock and vibration, even on rough surfaces, and features a locking mechanism that maintains load stability during turns.

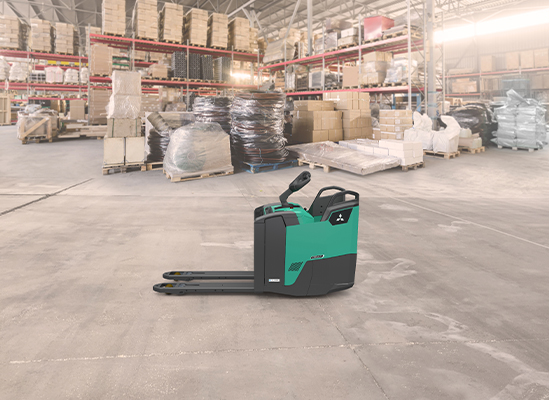

Operational Flexibility

Versatile Operation - Use the PBV20N3 either as a pedestrian style pallet truck or a ride-on truck for longer distance travel.

Rear Entry Fixed Platform - The PBF20-PBF25N3R is ideal for loading and unloading operations.

Side Entry Fixed Platform - The side-entry design with a fixed platform on the PBF20-PBF25N3S makes it ideal for low-level order picking and other internal applications where operators need to quickly enter and exit the truck.

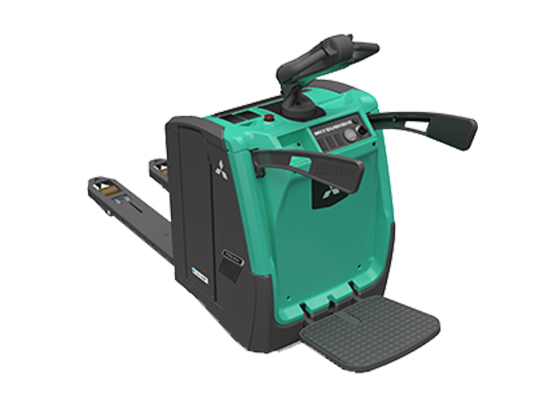

Total Cost of Ownership

Sealed Connectors and Sensors - Quick and easy access to major components and clear truck status communication from the display help to promote shorter maintenance time and keep your products moving.

Tiller Protection - Fully weather-protected and impact-resistant tiller heads are sealed to IP65 standards.

Durable Design - Designed and built with high quality components, these trucks keep your products moving by providing greater durability and reliability.
Questions?
Find Your Local Dealer.

Our extensive dealer and field support network is ready to serve you when and where you need us.
learn more

specifications

Modelo	Capacidad Básica (kg)	Altura Máx. de Horquillas (mm)²	Voltaje (V)	Long. a Punta de Horquilla (mm)	Ancho del Chasis (mm)	Altura del Chasis (mm)¹	Peso Bruto (kg)¹
PBP20N2R	4,400	135	24	92.8	28.3	5.3	1,311
PBV20N2	4,400	135	24	92.8	28.3	5.3	1,455
PBP18N2R	4,000	135	24	92.8	28.3	5.3	1,311

¹ No se refleja mástil opcional, altura colapsada o peso adicional en donde aplique.
² Diferentes alturas de elevación están disponibles para cumplir exactamente con sus necesidades. En donde aplique, el valor que se muestra es la altura máxima de las horquillas disponible como mástil opcional.

resources
- Product Brochure - English

  PBV/PBF20-25N3 (R)(S) Brochure - English

  Download
