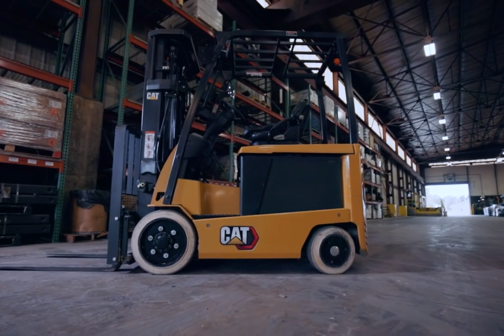

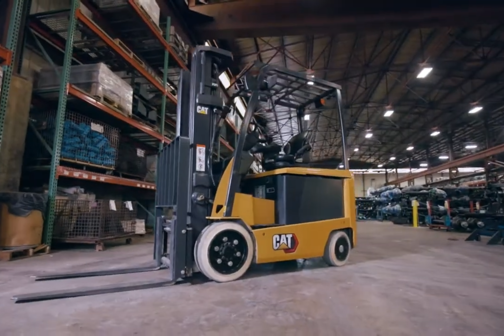

Electric Cushion Forklift

Work longer with up to two shifts on one battery charge without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking.

• Advanced drive system – no brushes or commutator
• AC hydraulic system
• Enhanced electric power steering

Battery Compartment Design
For extra protection and reduced noise, the unique battery compartment design features strategic spacers and an additional edge cover.

Protected Wiring
Routed inside of the legs of the overhead guard for extra protection.

Easy access to core components:

• AC drive motor
• Hydraulic motor and controllers
• No tools required to remove floorboard



500-hour convenient service intervals
Less time doing maintenance equates to more time on the floor moving product.

Motor Protection System
Display-based indicators notify the operators when motor maintenance is required, resulting in greater uptime while helping to reduce the risk of more costly maintenance needs down the line.

This integrated, computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.

When the operator is not in the normal operating position, the Presence Detection System electronically discontinues powered-travel movement and load-handling functions.

When an operator is in the normal operating position, but the seat belt is not buckled, an audible warning will sound and a visible indicator will appear, alerting the operator.

Full Hydrostatic Power Steering – Fully hydrostatic power steering provides exceptionally lower steering effort than conventional steering systems.

Standard Full-Suspension Vinyl Grammer^® Seat– This seat helps reduce shock and vibration while optimizing comfort and productivity via 4-way adjustments, lumbar support, weight suspension and forward/backward adjustments.

Floorboard And Pedals – Generous floor area with through-the-floor pedal design, which helps promote natural motion during operation.

The Lithium-ion battery package provides the highest performance battery solution.

• High performance batteries that are synchronized with the lift truck and charger for optimal energy efficiency
• No maintenance requirements and a longer service life mean each truck offers more daily use, increased throughput and reliable 24/7 output
• No more battery change outs, watering and degassing areas
• Maximize truck productivity through opportunity charging that can be interrupted anytime
• 5-year battery warranty included
