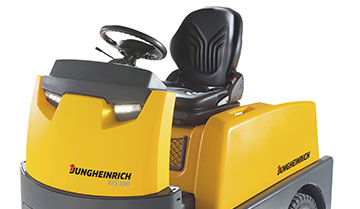

Electric Tow Tractor | EZS 570NA-590NA

15,400, 17,600 & 19,800 lb. Capacity Electric Tow Tractor

The EZS 570NA/580NA/590NA electric tow tractors have fully suspended front and rear axles for maximum ride comfort.

Home >
Products >
EZS 570NA/580NA/590NA

features
Productivity
Solid pneumatic tires allow this truck to work efficiently outdoors. Three cab-options are available for prolonged use in harsh environments.

Fast travel speeds and powerful ramp performance lead to faster cycles.

The Jungheinrich^® 3-phase AC motor and high-output AC controller deliver powerful torque and quick acceleration.

Awareness
Jungheinrich Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

The electronic parking brake automatically engages on ramps and inclines, reducing the chance for rollback.

Energy Efficiency
Highly-efficient AC motor consumes less energy, leading to extended battery life and increased run times.

Advanced regenerative braking recovers energy while coasting, plugging and braking – feeding lost energy back into the battery.

The AC drive motor and AC controller were designed in tandem by Jungheinrich to maximize performance and energy efficiency.

Ergonomics
An automotive-style steering wheel and acceleration/braking foot pedals make operation very intuitive.

The large, full-suspension seat has three adjustments – fore/aft, height and backrest angle – for maximum comfort.

Three optional operator cab packages keep operators comfortable while working outdoors in extreme weather conditions.

The full-suspension seat, spring-loaded suspension and large, solid pneumatic tires absorb bumps and vibrations caused by uneven floors, pot holes and outdoor surfaces.

Total Cost Of Ownership
This electric tow tractor's AC motors have no wearable components, like carbon brushes or contactors, to replace over time.

Sealed electrical components mean that dust and moisture cannot impact the truck’s performance.

A thick, steel chassis and large front bumper provide superior protection from possible impact damage.

Contact Our Specialists Today

Let us help you find the right solution to optimize your warehouse productivity.

Request More Information

Questions? Find Your Dealer.

Over 340+ locations in North America – ready to serve you where you need us.
Find A Dealer

specifications

Model	Basic Capacity (lbs)	Maximum Fork Height ²	Voltage (or Fuel Type)	Length To Fork Face	Chassis Width (in)	Max Fork Height (in)	Gross Weight (lbs) ¹
EZS 570NA	15,400	N/A	48	71.5	39.5	N/A	2,635
EZS 580NA	17,600	N/A	48	71.4	39.2	N/A	2,847
EZS 590NA	19,800	N/A	48	71.4	39.2	N/A	3,045

¹ Does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Value shown is maximum fork height available as an optional mast.

resources
- Product Spec Sheet - English

  EZS 570/580/590 Tow Tractor

  Download
- Product Spec Sheet - Spanish

  EZS 570/580/590 Tow Tractor
