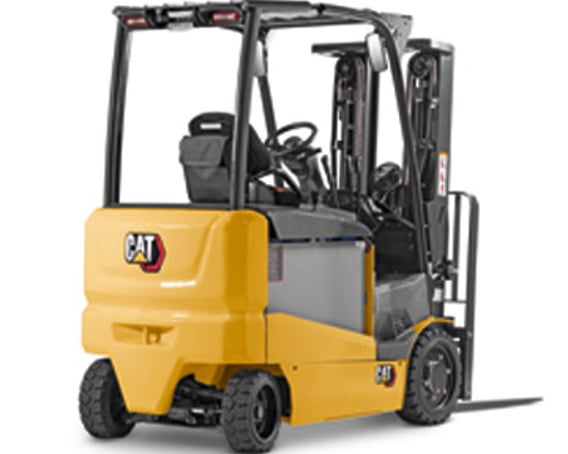

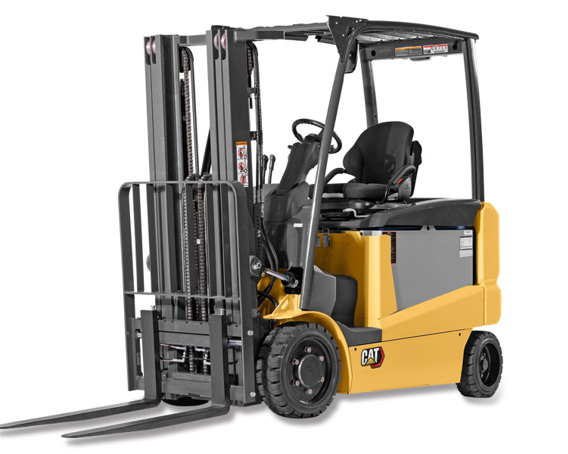

Electric Cushion Forklift

4000 - 8000 lb Load Capacity

The EC20Q-EC40Q series cushion tire lift truck combines the latest in intelligent controls, with industry-leading maneuverability and advanced AC Electric performance. Give your operators the tools they need to drive your business forward.

Features

Watch Product Video

The EC20Q-EC40Q cushion tire lift trucks combine advanced AC Electric power with intelligent controls. Designed for industry-leading maneuverability, this series empowers operators to work faster and smarter, driving your operations forward.

Screenshot 2026-09-10 at 1.00.36 PM

Specifications

Model Capacity (lb) Lift Height (in) 2 Power Type Length (in) Width (in) Height (in) 1 Weight (lb) 1
Model EC20Q Capacity (lb) 4,000 Lift Height (in) 2 107.9 Power Type 48 Length (in) 127.2 Width (in) 42.1 Height (in) 1 88 Weight (lb) 1 5,853
Model EC25CQ Capacity (lb) 5,000 Lift Height (in) 2 107.9 Power Type 48 Length (in) 127.2 Width (in) 42.1 Height (in) 1 88 Weight (lb) 1 6,747
Model EC25Q Capacity (lb) 5,000 Lift Height (in) 2 107.9 Power Type 48 Length (in) 130.8 Width (in) 42.1 Height (in) 1 88 Weight (lb) 1 6,247
Model EC30Q Capacity (lb) 6,000 Lift Height (in) 2 153.5 Power Type 48 Length (in) 132.4 Width (in) 43.3 Height (in) 1 88 Weight (lb) 1 8,394
Model EC33Q Capacity (lb) 6,500 Lift Height (in) 2 159.4 Power Type 48 Length (in) 133.0 Width (in) 43.3 Height (in) 1 88 Weight (lb) 1 8,780
Model EC40Q Capacity (lb) 8,000 Lift Height (in) 2 159.4 Power Type 48 Length (in) 136.3 Width (in) 43.3 Height (in) 1 88 Weight (lb) 1 9,797
Show All

Resources

Product Brochure
Notes

Request A Quote

Electric Cushion Forklift
4000 - 8000 lb Load Capacity
EC20Q-EC40Q
