EZS 7280NA Tow Tractor w/ 61,700 lb. Capacity

61,700 lb. Capacity Electric Tow Tractor

Ideal for towing heavy-duty loads in any industry, especially airports, automotive manufacturing plants, and hospitals. *Currently Not Available In Canadian Market

Home >
Products >
EZS 7280NA

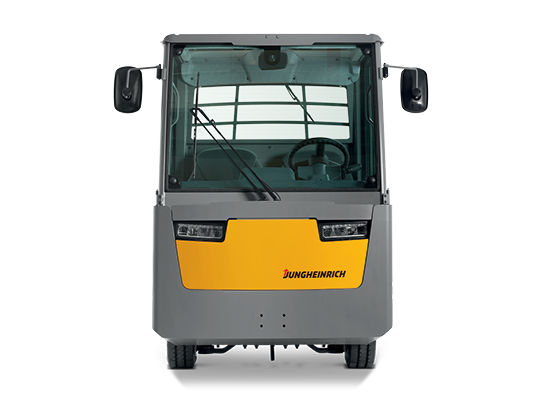

Full View of a Jungheinrich EZS 7280 Tow Tractor

features
Productivity
Maximum travel speeds of 15.5 mph (unloaded) and 7.5 mph (loaded) allows the operator to reach the intended destinations quickly and effectively.

Attaching trailers is quick and easy with the EZS 7280 touch mode feature. Additionally, the cutouts on the rear panel of the truck provide excellent view to the coupling from the operator’s seat.

Tow up to 9.5T (21,000 lbs.) on 10% grade ramps.

Even servicing is made faster and easier on the EZS 7280. All parts and components are easily accessible.

Awareness
Automatic parking brake with roll-back protection ensures when the truck comes to a stop, the tow tractor and trailer are automatically secured.

Hill-start assist provides no roll-back when starting on a ramp or incline, and anti-skid control (ASC) ensures smooth reliable acceleration on any surface.

Available with Jungheinrich curveCONTROL to automatically reduce speed while turning corners and help ensure control over loads.

Energy Efficiency
Energy-efficient 3-phase AC technology consume less energy, leading to extended battery life and increased run times.

The EZS 7280 offers two different wheelbases, NA and XL, for different battery sizes with a maximum capacity of up to 930 Ah to maximize performance and energy efficiency.

Ergonomics
Ergonomic workstation features several designs implemented with the operator in mind, such as:

Automotive-style interior and operation with foot-pedal and adjustable steering column
Spacious cabin with optimum all-around view
Low entry step with level foot-well
Excellent visibility to the coupling from operator’s seat
Outlet vents prevent window fogging

Total Cost Of Ownership
Total cost of ownership is minimized thanks to the combination of productivity features, energy and awareness designs, ergonomics, and uptime with its 1,000-hour service intervals.

Questions? Find Your Dealer.

Over 340+ locations in North America – ready to serve you where you need us.
Find A Dealer

specifications

Model	Basic Capacity (lbs)	Maximum Fork Height ²	Voltage (or Fuel Type)	Length To Fork Face	Chassis Width (in)	Chassis Height (in) ¹	Gross Weight (lbs) ¹
EZS 7280NA	61,700	N/A	80	118.2	51.2	77.6	9,000
EZS 7280 NA XL	61,700	N/A	80	130	51.2	77.6	10,500

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

resources
- Product Spec Sheet - English

  EZS 7280NA Tow Tractor

  Download
- Product Spec Sheet - Spanish

  EZS 7280NA Tow Tractor

  Download
